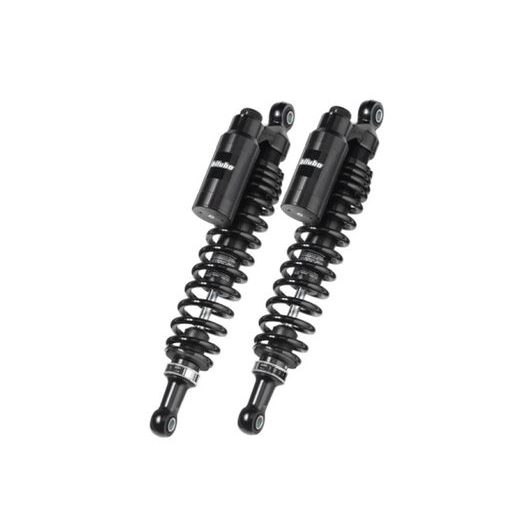

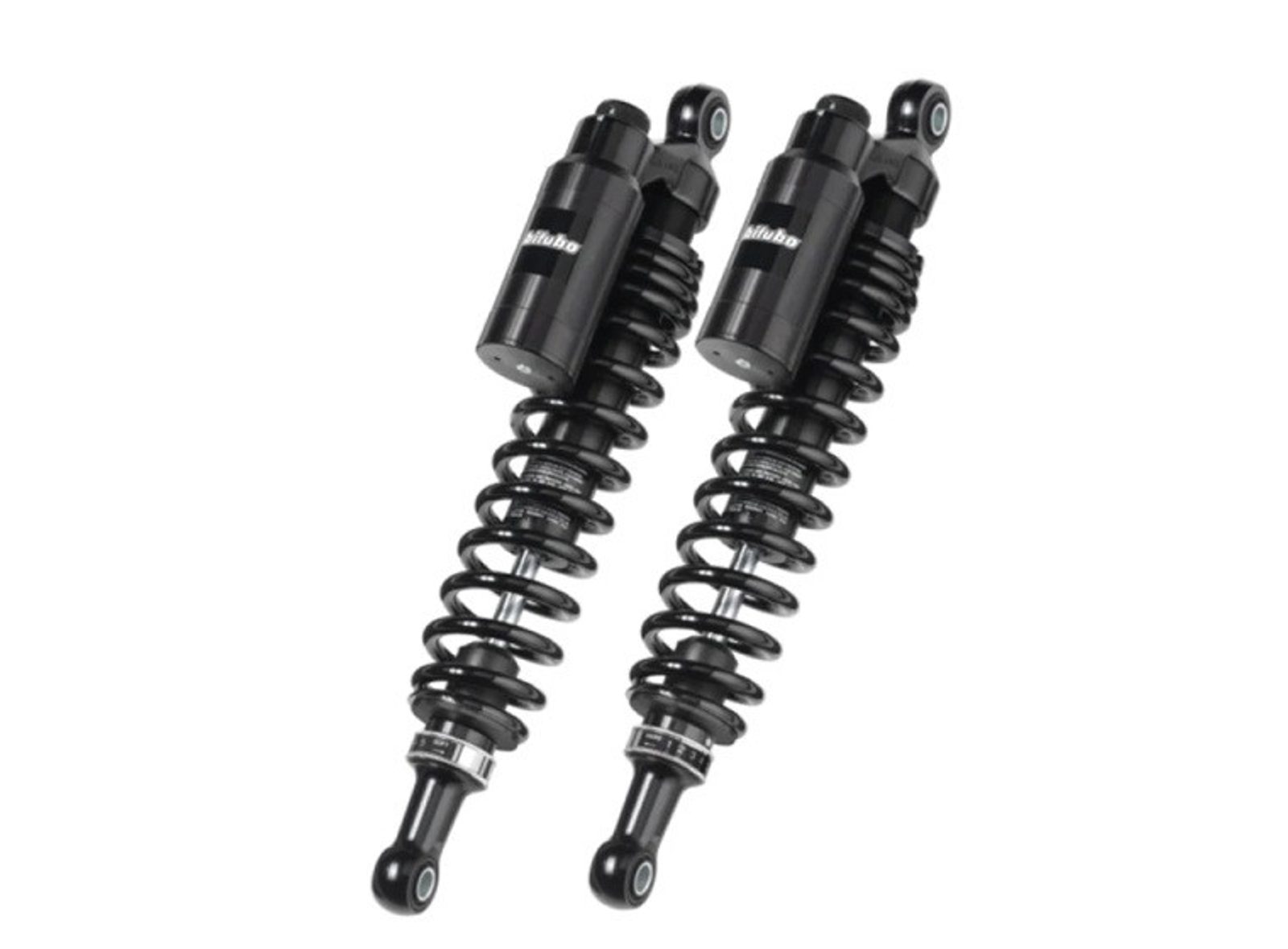

Rear twinshock BITUBO WMTA with separate chamber hydraulic preload and longer length

MAXIMUM PERSONALIZATION Several adjustments are available which allow the rider to personalize this shock Each model is supplied with a specific calibration and length. The shock can be fully rebuilt. These shocks have been developed for all high- and low-powered Touring and sport bikes.

TECHNICAL FEATURES: shock body manufactured with high resistance alloyed steel, Ø12mm steel rod, separated aluminum compensation chamber, gas pressurized (Nitrogen), CNC machined billet aluminum heads. Fully serviceable.

ADJUSTMENTS:

Hydraulic Spring preload (stepless), Rebound (5 or 7 click), Compression (12 clicks), Lenght: +10mm

COLOUR RANGE:

WMT03 Chrome Edition: Dark grey attachments, chrome body and spring

WMT02V1 Black Edition: Dark grey attachments,chrome body and black spring

WMT02V2 Dark Edition:black attachments and piggyback, black spring and body.

BOX INCLUDES Specific assembly instruction, suspension manual, tools for adjustment. Verify on "Search for my motorbike" the color of the spring (black, chrome or red).
