Regenerierungssatz für Heckstoßdämpfer K-TECH OHLINS 205-200-072

Shock Absorber Seal Head Service Kit - KYB 46/16

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

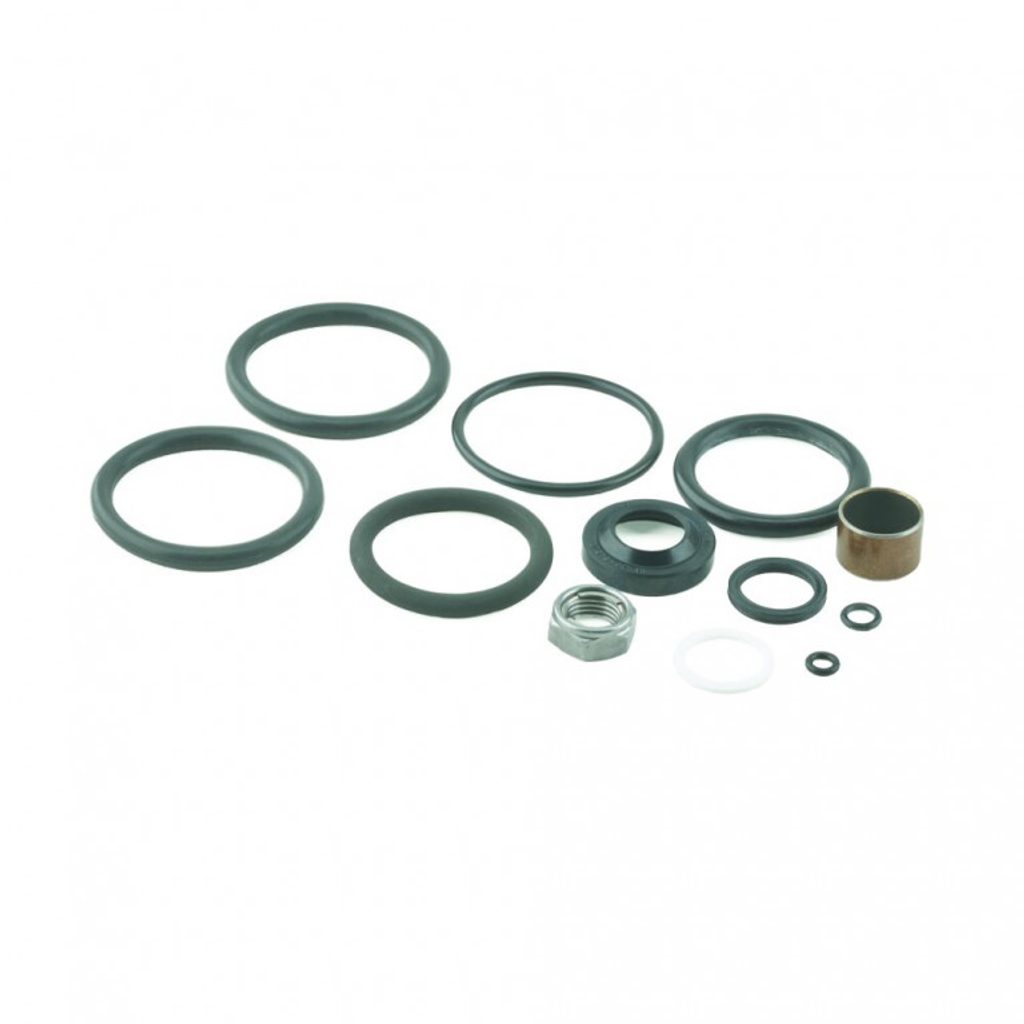

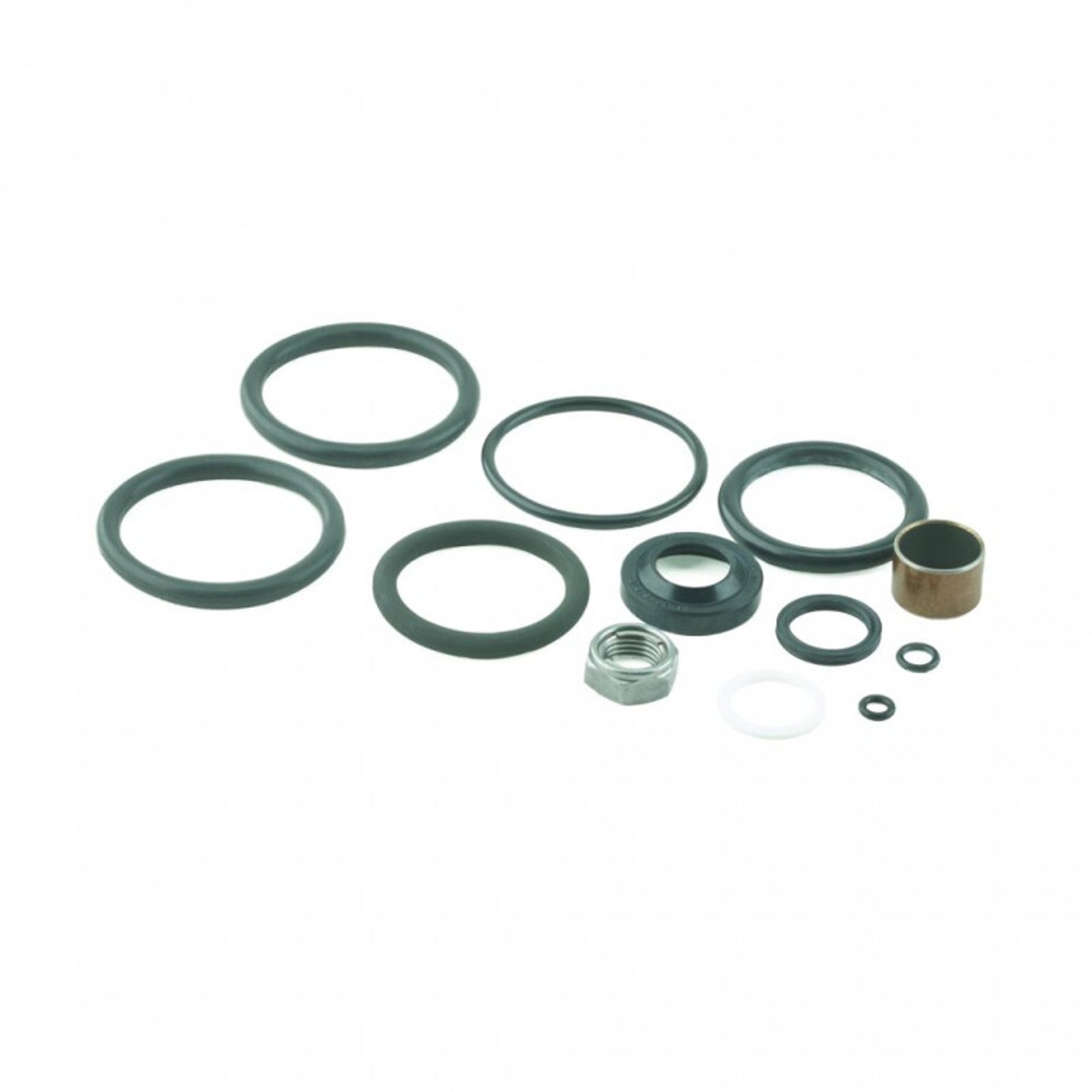

This kit consists of the following parts:

• O-Ring 04.10 x 1.60 NBR70
• O-Ring 05.50 x 1.60 NBR70
• O-Ring 33.00 x 5.00 FKM80
• O-Ring 40.20 x 3.00 NBR70
• O-Ring 33.00 x 5.00 NBR70
• O-Ring 40.00 x 5.00 NBR70
• Dust Seal 16.00 x 26.00 x 5.50/8.00
• Guide Bush 16.00 x 18.00 x 12.00
• Oil Seal Back Up ring 16.00 x 20.60 x 1.40 PTFE
• X-Ring 15.54 x 2.62 NBR80
• Piston Rod lock Nut M12 x 1.25P
