Servicesatz RCU Dichtkopf K-TECH OHLINS 205-200-074

Shock Absorber Seal Head Service Kit - Ohlins TTX46 - Flow

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

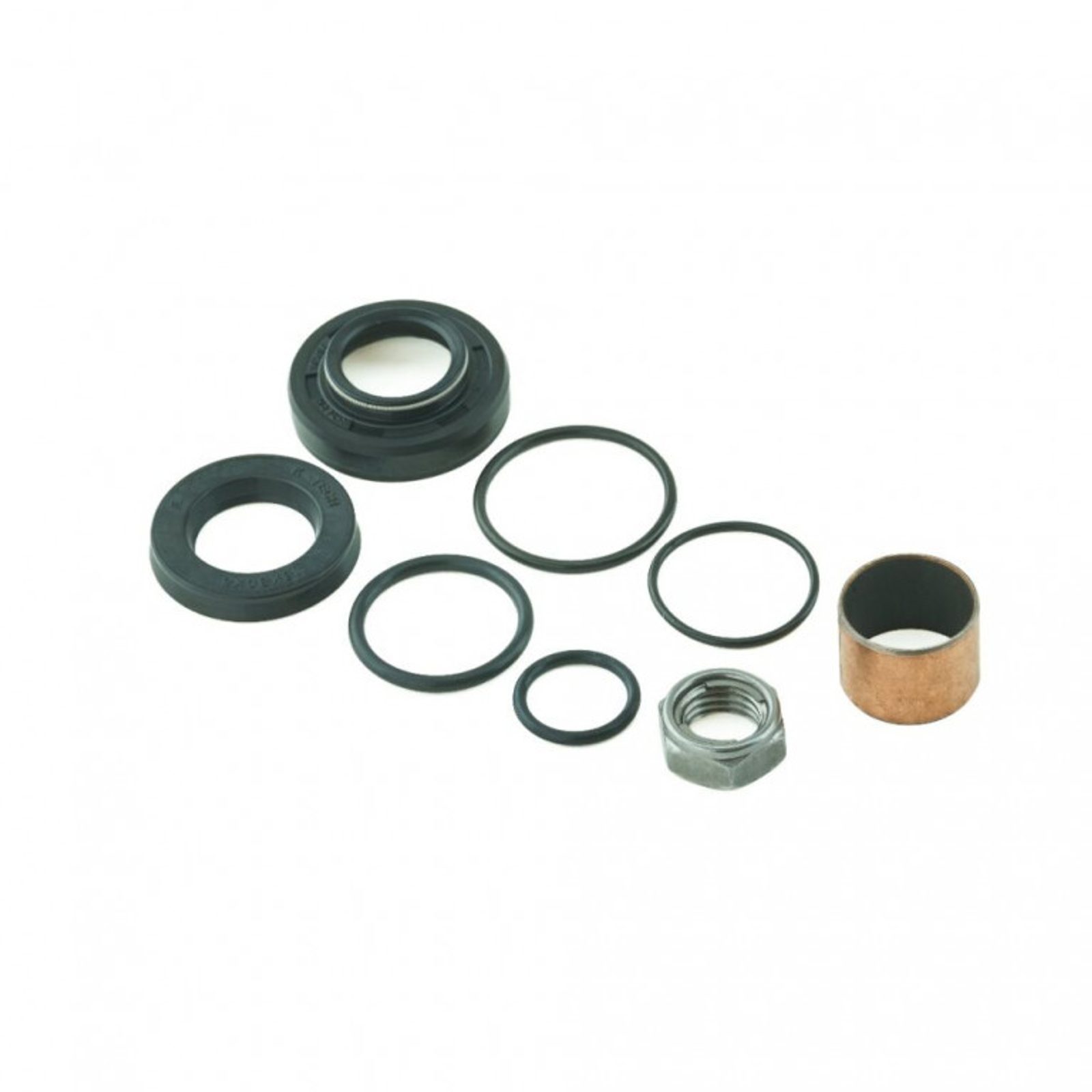

This kit consists of the following parts:

• O-Ring 12.00 x 4.00 NBR70
• O-Ring 05.50 x 1.60 NBR70
• O-Ring 20.35 x 1.78 FKM80
• O-Ring 23.53 x 1.78 NBR70
• O-Ring 27.00 x 2.00 NBR70
• O-Ring 27.00 x 4.00 NBR70
• O-Ring 42.00 x 4.00 NBR70
• O-Ring 40.00 x 5.00 FKM80
• Dust Seal 16.00 x 26.00 x 5.50/8.00
• Guide Bush 16.00 x 18.00 x 10.00
• Oil Seal 16.00 x 26.000 x 5.00 VITON
• Piston Rod lock Nut M12 x 1.25P
